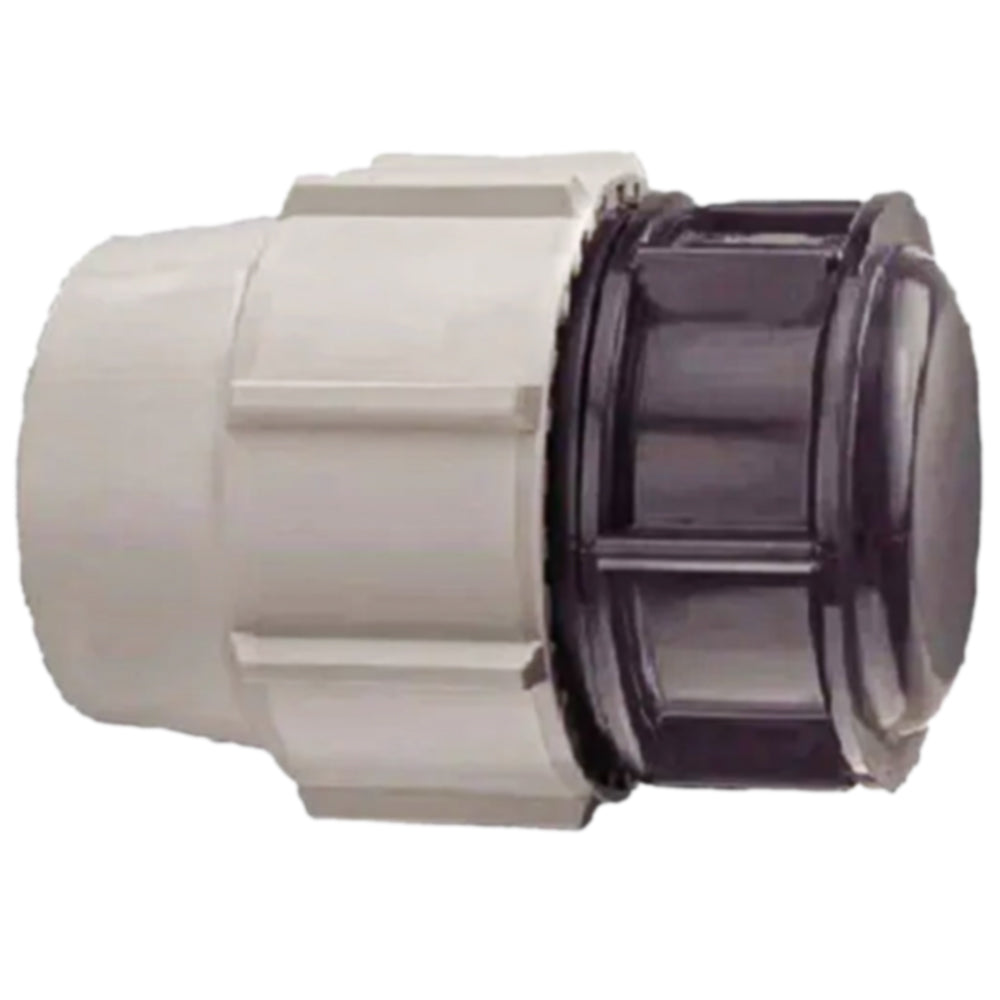

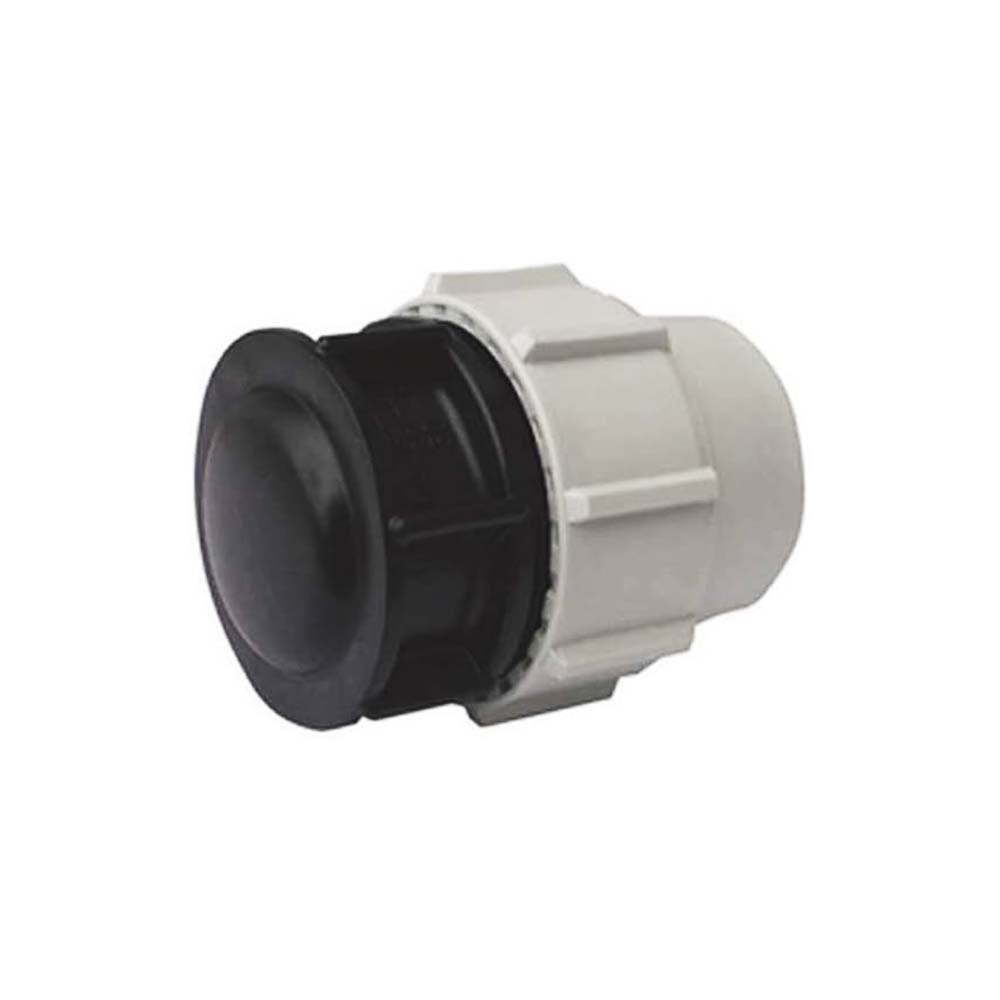

SKU: A46503

End of Line

€3,90

Tax included Shipping calculated at checkout.

Guy

End of Line d. 32mm End of Line d. 40mm End of Line d. 50mm End of Line d. 63mm End of Line d. 75mm

Product variants

The Nominal Pressure (PN) indicated refers to an operating
temperature of 20°C. For applications with constantly higher temperatures (and in any case up to 40°C) the Allowable Operating Pressure
(PFA) is obtained by applying to the PN the reduction coefficients reported in
Appendix A of UNI EN 12201-1

Returns and Refunds

If for any reason you are not satisfied with your purchase, you can return the products within 14 days of receiving your order.
You can proceed with the return of the entire order or only partially, by selecting the items you want to return during the return procedure.
Make the return directly by e-mail: info@agritura.com. Insert the order number and the e-mail with which you made the purchase, the surname used during the purchase and the numbers of the articles for which you intend to exercise the right of withdrawal.

Shipping costs start at €11 and vary according to weight and destination. For cash on delivery purchases there is an additional cost of €7.50.
The minimum order is 50€. In the case of orders for a lower amount, a surcharge of €5 + VAT will be added to cover the costs of processing the order.

Even if a product is out of stock, you can still place an order.
After receiving your order, we will immediately check availability with our supplier.
If the product is available, we will confirm and process your order.
If the product is not available, we will issue a full refund within 2 business days.
The estimated delivery time for backordered items is usually 2-3 weeks.

TECHNICAL FEATURES

FIELD OF USE	PLASSON WHITE & BLACK compression fittings are suitable for use in aqueducts, fire prevention systems and other fluids pressure
MATERIALS	BODY: Hi-grade black copolymer polypropylene (PP-B) RING: Hi-grade polypropylene grey/black copolymer SEALS: Black nitrile rubber (NBR) for diameters 75-90-110 only mm ethylene propylene copolymer rubber (EPDM) CLAMP RING: Polyacetal REINFORCEMENT RINGS: On SAE stainless steel female threads from 1" to 4" 304
INTENDED USE	For PEBD – PE63 – PE80 – PE100 pipes
HEALTH PRESCRIPTIONS	Compliant with what is required by the Ministerial Decree of 04/06/2004 n° 174 suitable for conveyance of drinking water or water to be purified and other fluids food
FLUIDS	Conveyance of pressurized fluids such as: - water, for any use and up to a pressure of PN16 if not otherwise indicated - industrial applications (underground or above ground) Conveyance of fluids not under pressure

THREADS	All threads up to 2.1/2”, designated R and Rp, comply with UNI EN 10226-1 (external conical thread and internal cylindrical thread, sealed on the fillet) The 3" and 4" threads, designated Rc, are in compliance with UNI EN 10226-2 (tapered external thread and tapered internal thread, thread sealing) Threads designated with the letter G are made in accordance with ISO 228 (cylindrical internal thread, non-thread sealing)
FLUID OPERATING TEMPERATURES	from 0° to 40°C
